  • L-BW50 Plastic Injection Machine

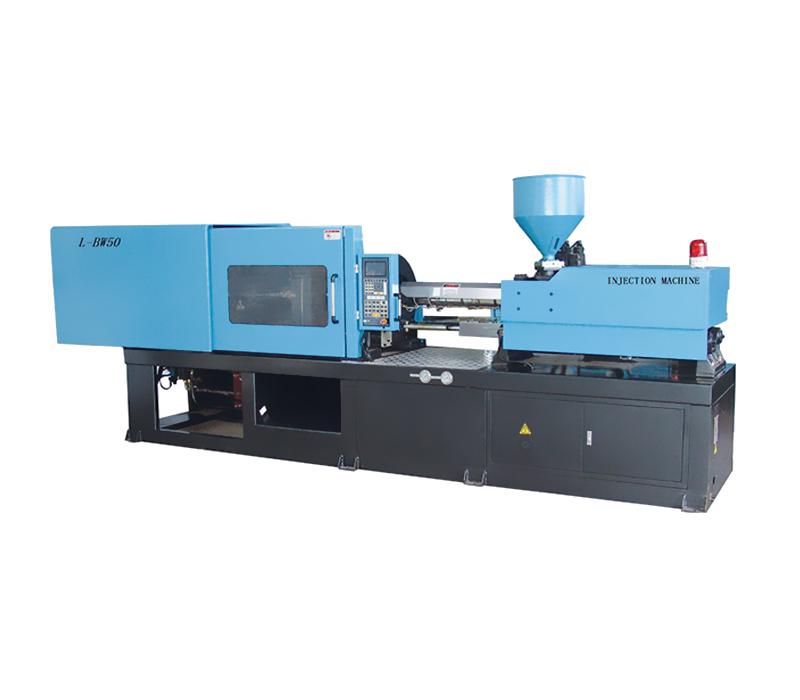

L-BW50 Plastic Injection Machine

SYSTEM DESCRIPTION:

Description:
◎ Designed according to CE standard.
◎ Techmation PLC,Japan Yuken hydraulic system.
◎ Applicable for all thermoplastic material such as PP,PE,PET,PC,PS,PVC,ABS,SAN etc,and it is used to produce preforms,caps,handles,containers,daily necessity,hardware/kitchenware as well as other plastics products.

Products Description

Message

MODEL



L-BW50

L-BW80

L-BW110

L-BW120

L-BW130

L-BW170

L-BW220

L-BW280

L-BW380

L-BW480

L-BW580

L-BW700

L-BW800

SCREW CODE

-

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

A

6

C

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

SCREW DIAMETER

mm

25

28

30

32

35

38

38

40

42

38

40

42

40

42

45

42

45

50

48

52

55

55

60

65

65

70

75

70

75

80

75

80

85

85

90

100

90

100

110

INJECTION PRESSURE

Mpa

184

168

147

186

170

144

188

168

152

187

170

154

190

174

151

225

188

158

211

180

160.8

216

182

155

218

185

156

212

184

143

210

185

164

219

195

158

225

182

150

SHOT WEIGHT(PS)

g

45

53

61

90

100

130

132

158

175

170

183

208

200

224

257

287

320

407

432

510

570

654

779

890

966

1120

1286

1280

1469

1887

1571

1778

2018

2174

2438

3010

2702

3336

4037

SCREW L:D

-

22:1

20:1

18:1

21.6:1

20.5:1

19.3:1

22:1

20:1

18:1

22:1

20:1

18:1

22.1:1

20:1

18:1

22:1

20:1

18:1

22:1

20:1

18:1

22:1

20:1

18.4:1

21.6:1

20:1

19:1

23.5:1

22:1

19.4:1

22:1

20.5:1

19.3:1

21:1

20:1

18:1

22:1

20:1

18:1

SCREW STROKE

mm

102

135

150

170

191

245

281

322

315

360

385

415

460

SCREW SPEED

r.p.m

0-320

0-200

5-180

10-170

5-170

0-170

0-170

0-160

5-200

5-150

5-130

5-120

5-130

INJECTION RATE

cm'/sec

24.5

32.4

40

78

90

100

116

120

122

118

122

124

119

123

125

120

125

130

136

168

203

207

246

270

275

318

365

323

371

365

351

400

451

486

545

673

540

667

807

 PLASTICIZING CAPACITY

g/sec

4

4.5

5.2

9.8

14

18

19.3

20.2

22.3

19.2

20.1

22

20

21

22.5

20

22.7

23

20

25

30

30

36

40

45

52

60

49

58

60

59

68

86

64

72

89

65

80

95.8

 TYPE OF CLAMPING UNITS

-

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

Double Toggle

 CLAMPING FORCE

tons

50

80

110

120

130

170

220

280

380

480

580

700

800

MOULD CLAMPING STROKE

mm

255

300

320

375

375

435

470

550

680

750

850

900

1000

MAX DAYLIGHT OPENING

mm

605

650

700

775

805

935

1050

1170

1400

1550

1700

1900

2000

MOULD THICKNESS(MIN-MAX)

mm

150-350

130-350

150-380

150-400

150-430

180-500

200-500

230-620

250-720

300-800

350-850

400-900

450-1000

SPACE BETWEEN TIE BAR(W x H)

mm

280x260

350x350

385x350

375x415

420x420

460x460

510x510

580x580

680x680

810x785

860x860

920x920

1000x1000

HYDRAULIC EJECTION  FORCE

tons

2.2

2.7

3.0

3.8

3.8

4.5

7.0

7.0

11

15

16.6

18

20

HYDRAULIC EJECTION STROKE

mm

65

100

80

110

115

130

135

145

200

200

250

285

260

SYSTEM PRESSURE

Mpa

14

14

16

16

16

16

16

16

16

17.5

16

16

16

PUMP DRIVING MOTOR

Kw

5.5

9

11

13

13

15

18.5

22

37

18.5+30

18.5+37

37+37

37+45

HEATER  CAPACITY

Kw

2.3

6

6.3

6.3

6.3

7.5

11

14

19

24.7

28

30

36

TEMPERATURE CONTROL ZONES

-

3+1

3+1

3+1

3+1

3+1

3+1

4+1

4+1

5+1

6+1

6+1

6+1

7+1

TANK CAPACITY

L

160

180

180

220

220

350

400

500

1000

1050

1300

1300

1800

MACHINE DIMENSIONS(LxW xH)

mm

3600x1100x1700

3800x1200x1700

3850x1260x1780

3940x1280x1795

4150x1290x1800

4920x1290x1810

5400x1550x1950

5800x1650x2050

7180x1950x2600

8600x2200x2400

9400x2300x2800

9700x2800x3290

10300x2700x3290

MACHINE WEIGHT

tons

2.8

3

3.5

4.2

4.5

5.2

7.5

9

11.5

18

28

35

48

 When PC(polycarbonate),PVC and other plastic material used for engineering are planned for molding.it is necessary to inform us for special designation.

When PC(polycarbonate).PVC and other plastic material used for engineering are planned for molding.it is necessary to inform us for special designation.
