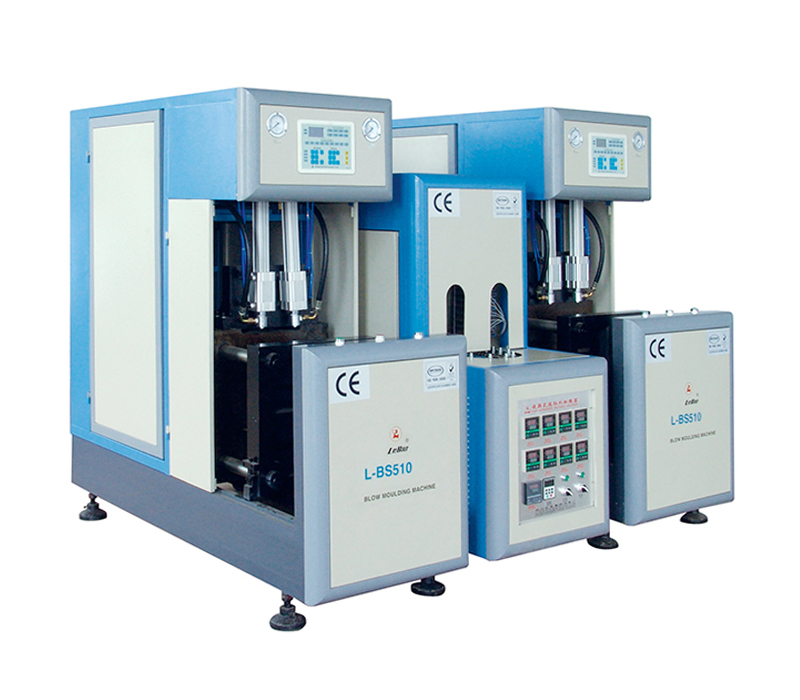

L-BS510-2 Combined Semi automatic Blow Molding Machine

SYSTEM DESCRIPTION:

FEATURES:
L-BS510-2 Combined Semi automatic Blow Molding Machineis suitable to produce different shapes of PET/PC/PP/bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water, carbonated drink, juice, medicine, cosmetic and oil bottles etc.
◎ The machine adopts revolving infrared pre-heat system. It ensures PET preforms be heated evenly.
◎ The machine uses mechanical-double-arm mould clamping which ensures the mould will be closed tightly even under high pressure and high temperature.
◎ The air system consists of two parts: pneumatic action part and bottle blow part to meet the differen pressure requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shape bottles.
◎ The machine is also equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
◎ The machine can be operated in the step-by-step mode and the semi-auto mode.
◎Wide-mouth and hot-filling bottles can also be made.

Products Description

Message

TYPE

ITEM

MEASUREMENT

L-BS510 / STANDARD

L-BS510-2Combined Semi-automatic Blow Molding Machine COMBINATION

END PRODUCT

Material



PET / PP / PE / PC

PET / PP / PE / PC

Volume

L

0.05-2.5 (2-cavity)  3-6 (1-cavity)

0.05-2.5 (4-cavity)  3-6 (2-cavity)

Theoretical output

purchase / h

0.05-2.5L : 850  3-6L : 400

0.05-2.5L: 1900  3-6L : 800



MOULD PLATE

Max. length

mm

360

360

Max. diameter

mm

180

180

Max.mould plate dimension(L X H)

mm

420X500

420X500

Max.mould thickness

mm

160-240

160-240

Clampinq force

KN

180

180

Mould opening stroke(Adjustable)

mm

200

200

AUXILIARY

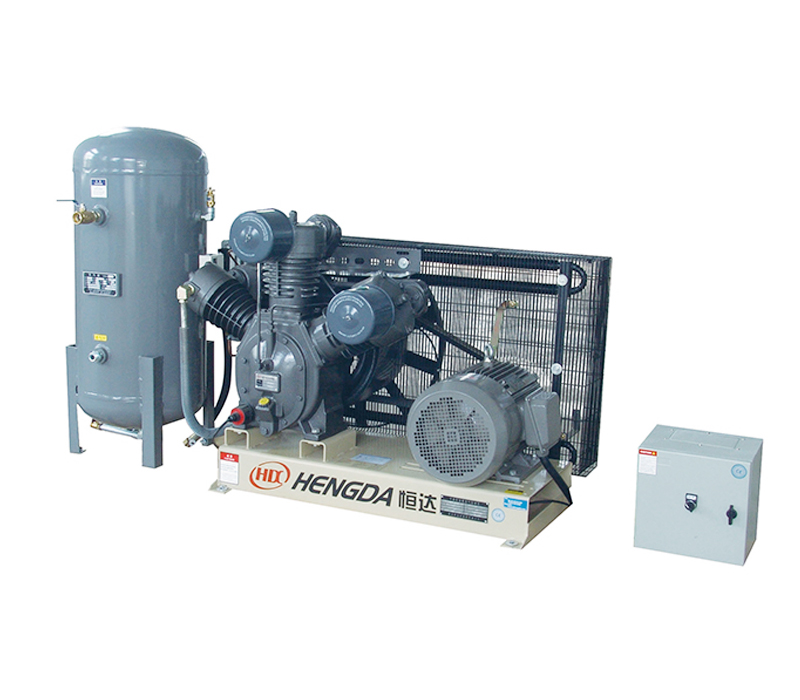

High pressure compressor

M³ / Mpa

≥1.2 / 3.0 x 1set

≥1.2 / 3.0 x 1set

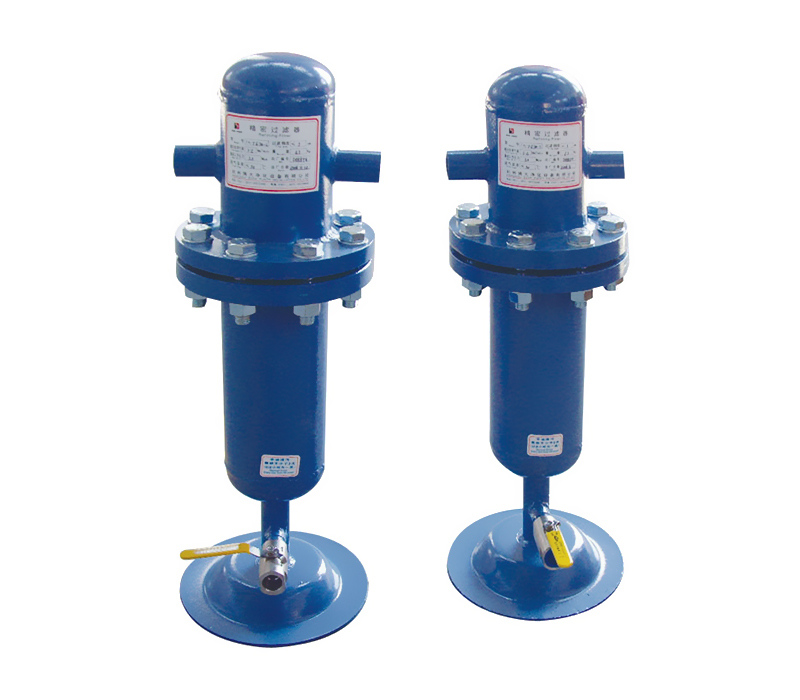

Precision air filters

M³/ Mpa

≥1.0 / 3.0 x 2pcs

≥1.0 / 3.0 x 2pcs

MAIN MACHINE ELECTRICITY

Power

KW

11

11

Voltage / Frequency

V / Hz

220 / 380 / 50-60

220 / 380 / 50-60

Power

KW

15

20

MACHINE SIZE AND WEIGHT

Blow units dimension (L X W X H)

M

1.53X0.6X2.0

1.66X0.74X2.2

Blow units weight

T

0.6

1.3

Pre-heater dimension (L X W X H)

M

1.80X0.50X1.16

2.25X0.56X1.16

Pre-heater weight

T

0.30

0.40

SAFETY

Auto-emergency alarm

SAFETY INTER-LOCKING DEVICE
