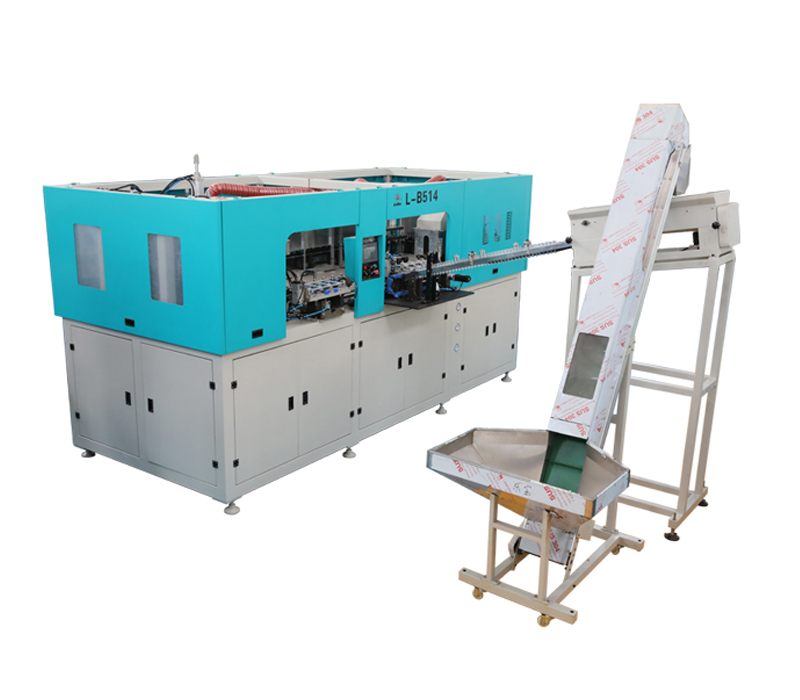

L-BS514 4-cavity automatic blow moulding machine

SYSTEM DESCRIPTION:

FEATURES:
L-BS514 4-cavity automatic blow moulding machine is suitable for producing PET/PP, plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics, wide-mouth bottle and hot fill bottle, etc.
◎ Feeding system carries the preforms by robot automatically.
◎ Infrared oven heater adopts the quartz lamp to heat the PET preforms.
◎ Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits.

Products Description

Message

TYPE

ITEM

MEASUREMENT

L-BS514

unit

1-CAVITY one out one

2-CAVITY One out two

4-CAVITY One out four

6-CAVITY One out six

MOULD PLATE

Clamping force

kg

30000

16000

32000

48000

Clamping stroke

mm

220

125

125

125

Stretching stroke

mm

450

350

350

350

Bottom Stroke

mm

30-70

30-70

30-70

30-70

Cavity pitch

mm

220

120

120

120

Number of Cavity

Cavities

1

2

4

6

CONTAINER

Max.container volume

Itr

6

1.5

1.5

1.5

Neck diameter range

mm

115

18-38

18-38

18-38

Max.container diameter

mm

200

115

115

115

 Max.container height

mm

350

320

320

320

 Carriage unit

pcs

30

58

116

166

THEORETICAL OUTPUT

bph

800

2400

5000

7200

MAIN MACHINE

Total power

kw

38

30

54

78

Heating power

kw

15

10

20

40

ELECTRICITY

Max.heating power

kw

33

24

48

72

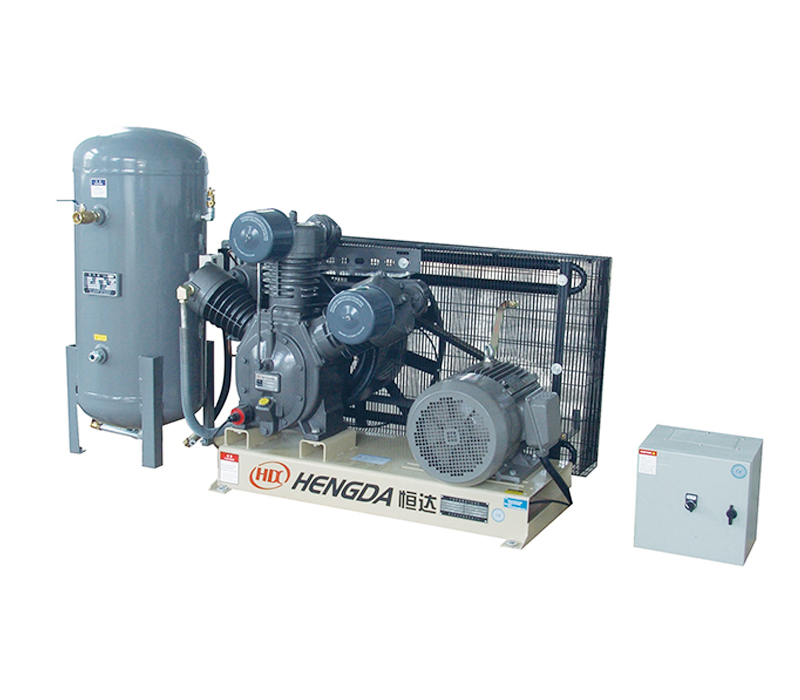

AIR SYSTEM

Operating pressure

kg/cm²

7

7

7

7

Air consuming

ltr/min

1000

1000

1500

1500

Blowing pressure

kg/cm²

35

35

35

35

Air consuming

ltr/min

4000

3200

6000

7400

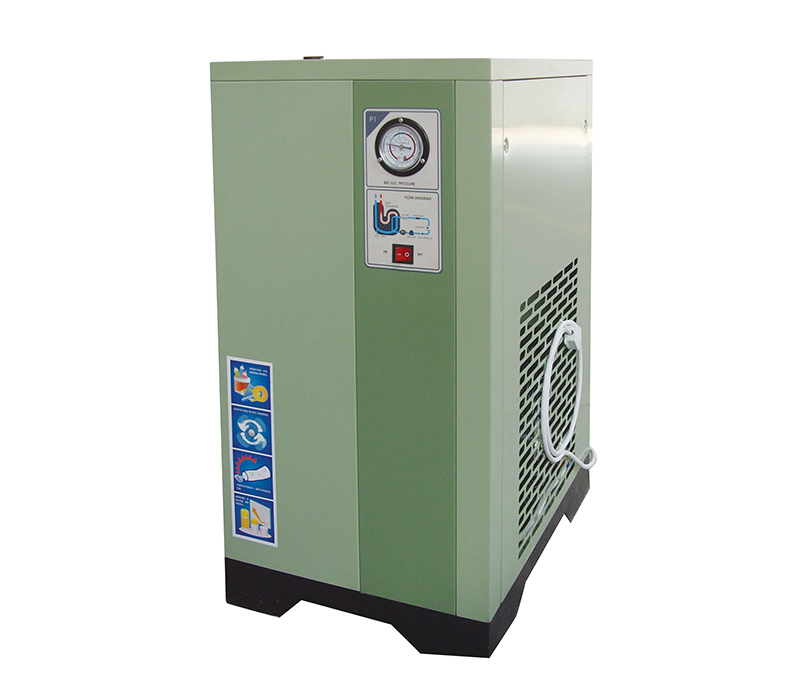

AIR DRYER

Operation pressure

kg/cm²

2-4

2-4

2-4

2-4

Temperature



10-12

10-12

10-12

10-12

Consuming

kcal/hr

6000

5400

10000

11400

Flow rate

ltr/min

45

30

60

90

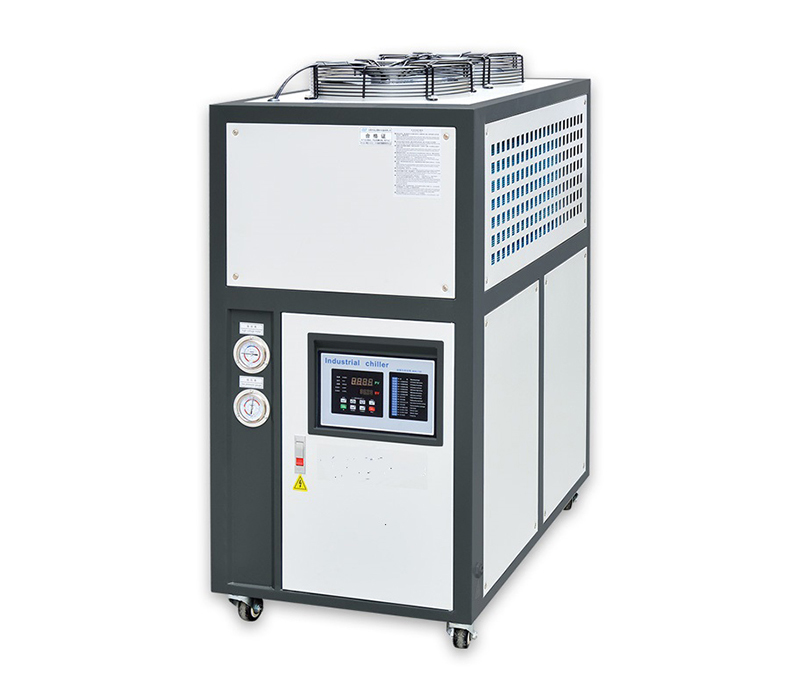

WATER CHILLER

Operation pressure

kg/cm²

2-4

2-4

2-4

2-4

Temperature



30

30

30

30

Consuming

kcal/hr

39000

39000

45000

54000

Flow rate

ltr/min

130

1300

150

180

MACHINE

Machine size

mm

2850 x 1850 x 2200

1950 x 1750 x 2200

3500 x 1900 x 2200

3150 x 2150 x 2200

Machine weight

kg

4000

2800

3000

1500

REMARKS

1.All data standard indication for 0.6L bottle.

2.The actual output depends on the preform quality and bolite shape.

3.Specifications are subject to change without notice.

4.Please provide the stable ambient temperature.
